Description

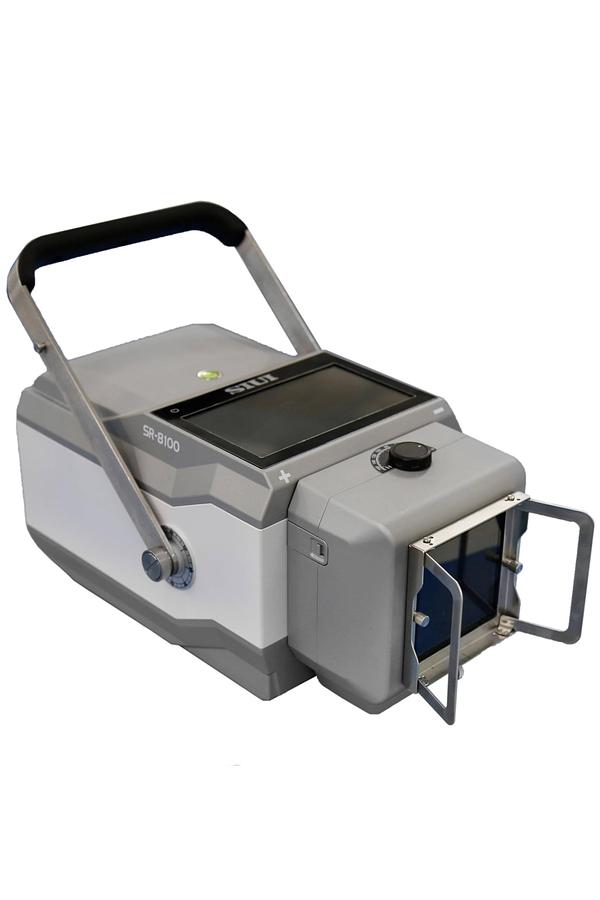

SIUI SR-8100 High Frequency Portable X-ray
Main Features:
-
Portability:Compact and lightweight design for easy transport and operation.
-
Security:Low radiation control technology to protect operators and patients.
-
Efficiency:USB upgrade function for more efficient file maintenance and management.
-
Precision:Dual closed-loop control technology for high-quality images.
-

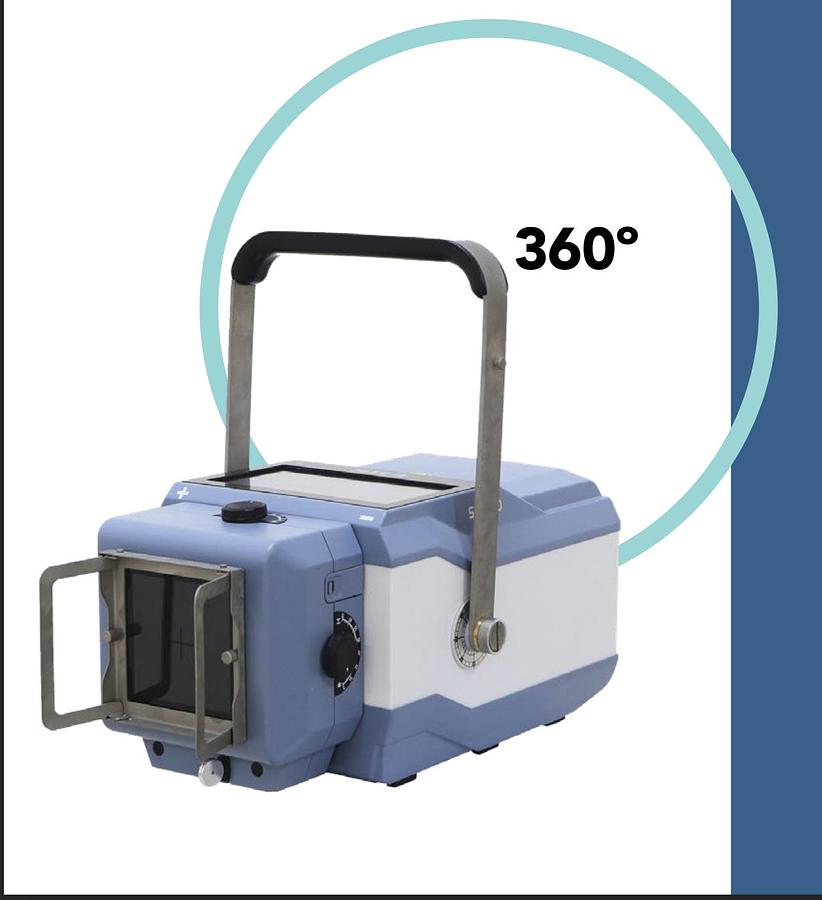

Versatility:360 degree rotating arm and multifunctional stand to adapt to different X-ray techniques.
Technical specifications:
-
Power output:2.2kW
-
Maximum tube voltage:100kV
-
Adjustable mAs range:50mAs
-
Spot size:1.2mm x 1.2mm
-
Battery:300 shots, 3 hours to recharge
Innovative Design:
- The SR-8100 integrates high voltage generator, Toshiba X-ray tube, collimator and battery in a single unit.
- It offers high image quality at low doses.
- Compatible with Flat Panel (DR), CR and conventional film.
- Laser pointer for precise shooting.
Optional Accessories:

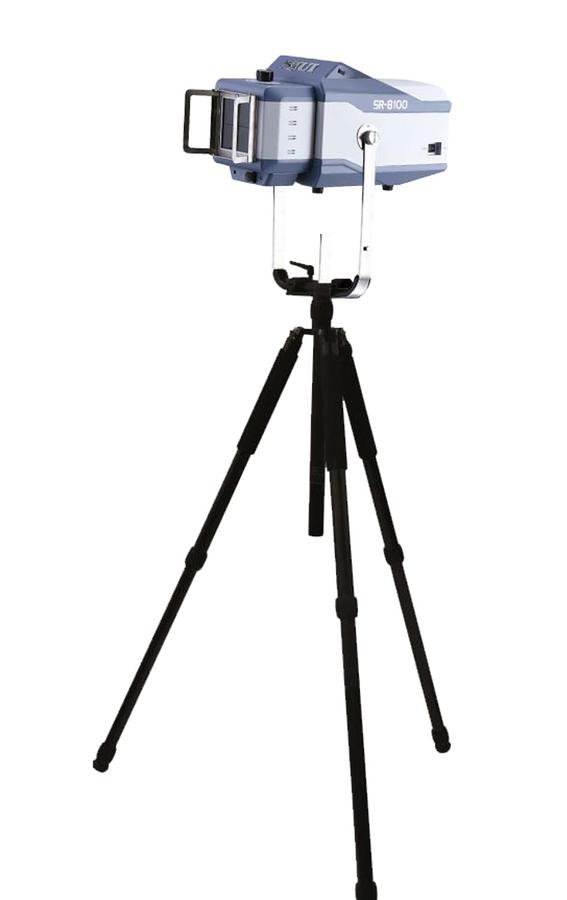

- Portable, mounting and movable supports.
- Grille and guard.
- Protective accessories.
Specifications
| Manufacturer | SIUI |
| Model | SR-8100 |
| Year | 2024 |
| Condition | New |
| Stock Number | 0034 |
| Maximum output power (kW): | 2.2kW |
| KV range: | 40-100kV |
| MA Range: | 10-50mA |
| MAs range: | 0.32-100mAs |
| Focal point: | 1.2 x 1.2mm |
| Collimator lamp: | Halogen (12V, 50W) |
| Power supply (V): | 100-120V |
