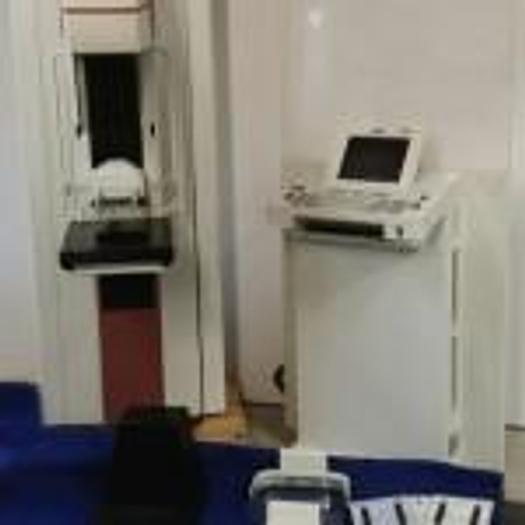

Lorad MIV

Rotating Anode X-Ray Tube Heat capacity, hu 300 Focal spot size, mm 0.1 (small), 0.3 (large) White/filter combinations Mo/Mo, Mo/Rh Heat dissipation rate, hu / min 60 Optional Accessories High Transmission Cellular (HTC) grilles and FAST paddles (for Lorad MIV Platinum), various compression paddles, StereoLoc II, DSM, locator kit, barcode reader, interface Generator: 30, 100 Kv with 20 increments of 1 kV Power 200-240 VAC ± 10%, 35 A, 50/60 Hz Dimensions: Entrance: 190 x 64 x 128cm; Gantry, 189 x 81 x 43cm Weight: Display 384 Kg (800) 91 kg console Radiation Shield, Bucky, Motorized 25-55cm Automatic Collimator, Electromagnetic Motion Locks, Fail Safe, Rotation +195, -150, Digital Readout Scale Guide (POSITIONING MOUNT) Digital Readout, Integrated AutoFilm ID, 1.8x Magnification, Manual Motorized Compression Radiation output: Mr / sec @ 28 kvp> 1,500, 60 cm Other Attributes: (Interference Compensation) 18 x 24 cm SRL 2000 Bucky; 24 x 30 cm SRL 2000 Bucky; HTC grids; QUICK palettes, various palettes; Magnification table; mask; radiation shield; AutoFilmID; dualfunction footswitch 3 month warranty and installation included Does not include shipping
