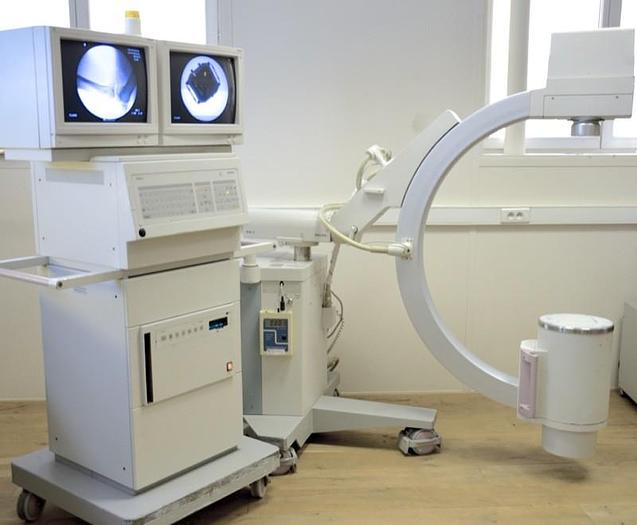

1998 PHILIPS BV 25

Dual monitors 9 "intensifier Basic orthopedic software KV / MA range: 0.1 mA at 40 kV to 3 mA at 100 kV. Focal point: 0.6. Grid: fixed circular grid 44 lines / cm, ratio 8, SID = 90 cm. Iris Diaphragm: Electronically controlled iris diaphragm, automatically limited to the size of the image intensifier input field (15 cm 0). Remote control and steplessly adjustable to a 5 cm diameter field size in the image intensifier input field. Blinds: two parallel shutters of 0.5 cubic mm, remotely controlled and stepless dimmable for a field of 1 to 16 cm wide in the image intensifier. The blinds can be rotated ± 90 °; in the intermediate position, the opening of the slit is perpendicular to the length of the generator cover. Includes installation and post-sale training Available for immediate delivery and inspection in Mexico City Fluoroscopy: voltage deviation ± 6% ± 2KV, current deviation ± 7% ± 0.02 MA. X-ray: voltage deviation ± 10%, current deviation ± 10%, ms time deviation ± 3%, product deviation of plus ± 12% ± 0.04 plus
